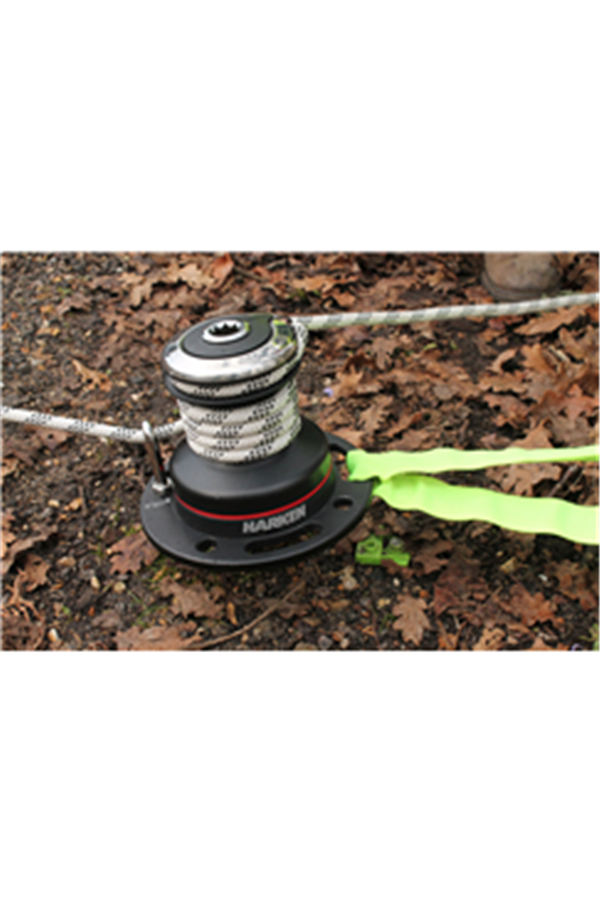

Lightweight 500kg Portable Easy Use Stainless Steel Drum Design Winch

CE certified portable winch/ lowering device is mounted to a robust adapter plate. Lightweight 7kg winch with a 500kg capacity. Simple durable long lasting design maximizes operator pulling power by up to 40 times.

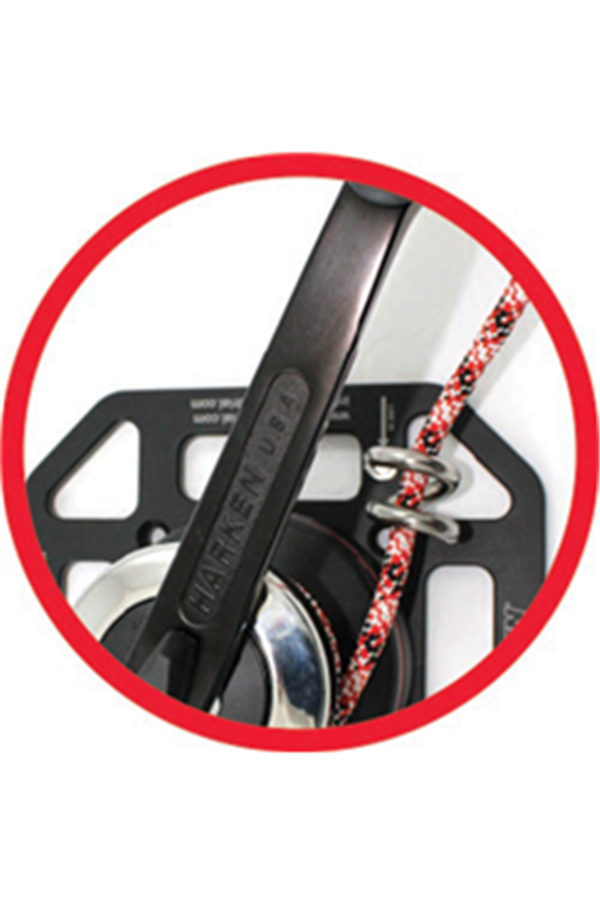

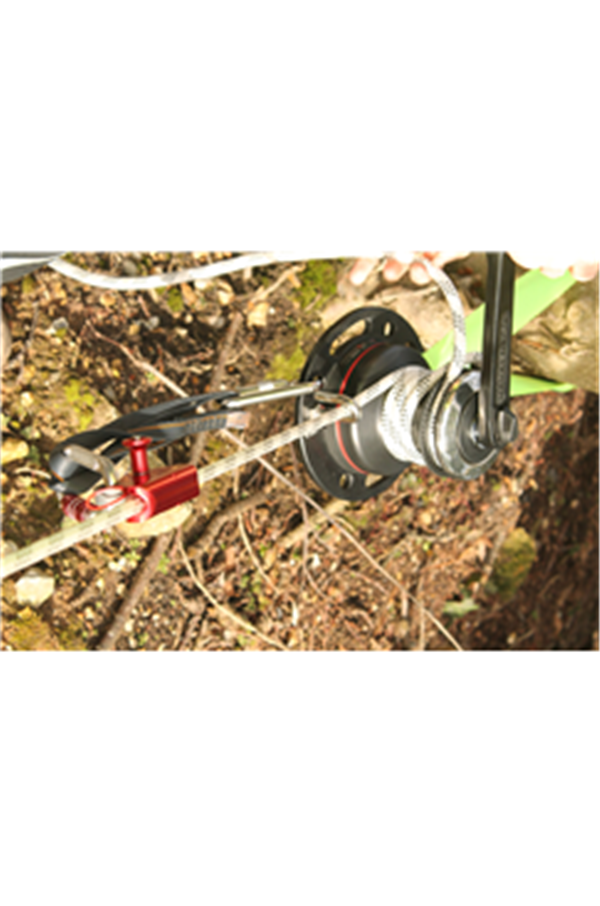

The rope must feed through the pigtail line lead ensuring correct alignment and loading of the Winch for maximum efficiency.

Mounting Plate:

Multiple mounting options provide versatility when working in challenging or remote environments.

Manufactured to remove excess weight and enable multiple attachment points without compromising strength.

Winch:

17-4 PH stainless steel load carrying gears and pins for strength and durability. The uniqiue drum design maximizes grip on the rope.

Weight: 7kg

Fibre Rope:

Designed for use with fibre rope up to 12mm in diameter, reducing weight and allowing alignment to the load. Smooth surfaces and chafe-free design are amenable to fibre rope. There is no maximum rope legnth for use with the Riggers Winch, the pigtail allows the rope to be installed without feeding the end of the rope through.

CE CERTIFICATION

CE certified under EN13157 (Machinery Directive) with a maximum working load up to 500kg SWL

* ROPE IS SOLD SEPARATELY *

**DELIVERY IS 3-4 DAYS FROM DATE OF ORDER**
